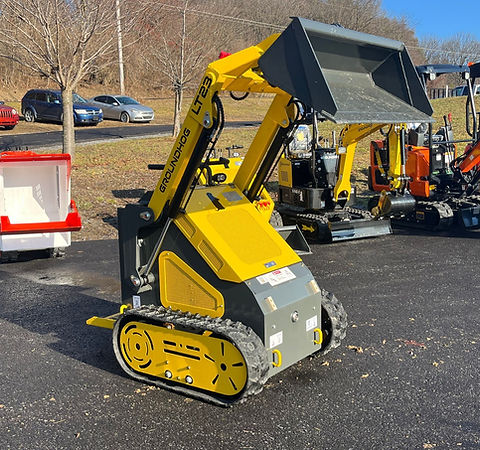

Model : LT23 TRACK SKID steer LOADER
The LT23 is a stand-on compact track loader that gets the job done. With an operating capacity of 2200 lbs., this machine will help complete challenging or everyday tasks efficiently in limited-space job sites. The LT23 has been designed to be used in construction, landscaping, etc.
Model : LT23 $14,900
Max Working Height (A) 6' 11"
Max Pin Height (B) 6' 1"
Max Dump Height (C) 4' 9"
The Highest Point Discharge Discharge (D) 1' 3"
Bucket Swing Angle (γ) 55°
Bucket Unloading Angle (β) 30°
Angle of Departure (α) 8°
Total Height (H) 3'11"
The Height From the Ground (F) 3.5"
Wheelbase (G) 2' 1"
No Bucket Length (J) 5'9"
Total Width (W) 3' 5"
Bucket Width (K) 3' 3"
Total Length (L) (with bucket) 7' 3"
Turning Radius (R) 4' 3"
Engine Rated Power 21 HP/ 23 HP
Engine Rotating Speed 3600 rpm
Noise 95 Db
Hydraulic Pressure 17 Mpa
Cycle Time Raise 4.27 s Dump 1.34 s Lower 3.31 s
Load Weight 700 lbs
Bucket Capacity 0.15 m3
Max Lifting Power 1400 lbs
Speed 0-5.5 km/h
Operating Weight 2200 lbs
Tire Type Track
