The 14 Series mini Excavator
Custom-Built Equipment | One-Year Powertrain Warranty | Locally and Family Owned
269-352-5466
Hours: Open •Monday - Friday (8am - 5pm)
Saturday (9am - 1pm)
Simplify Your Big Outdoor Projects
Complete your big outdoor jobs more efficiently with an affordable excavator from SWMI Equipment LLC. We sell custom-built excavators from 1 to 3 1/2 tons that are all assembled right here in the USA!
Excavators With a Variety of Optional Features
-
Briggs & Stratton XR Professional Gas - only available with the Groundhog KH14G
-
Kubota Diesel Engines - used in excavators from 1 ton to 3.5 ton
-
Eaton Drive Systems (Optional upgrade)
-
Parker Pumps (Optional upgrade)
-
Prices start at $8,900.00
Mini Excavator Features
-
Hydraulic pilot servo operation system
-
Steel or rubber track
-
Telescopic track frame
-
Compact and light with a small turning radius
-
Open cabin with canopy
-
LED Boom light
-
Grease gun
-
Toolbox
-
Free hydraulic thumb and auxiliary hydraulics on every excavator!
Measurements are from the end of the cab instead of the center post like most manufacturers. We've listed the specifications to give you more precise representation, so you know what to expect.
KH14G/kh14g-2/ZH14G/BH14G/BH14G-2 starting PRICES
-
KH14G $9,900
-
KH14G-2 $10,900
-
ZH14G $10,400
-
BH14G $9,900
-
BH14G-2 $9,400
Available upgrades
-
2 post-ROPS
-
Eaton Drive System
-
Parker Pump
-
Cab enclosure
-
Heat and air conditioning
-
Color change
-
Side swing boom
-
Retractable tracks
-
Kubota D902 24 HP diesel engine

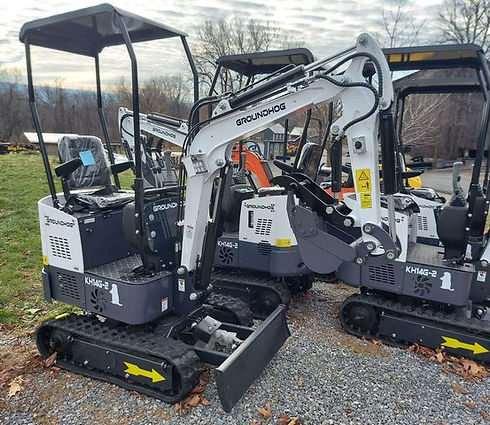

KH14G - $9,900 KH14G-2 $10,900
Operating Weight - Rubber Tracks 2100 lbs
Operating Weight - Steel Tracks 2700 lbs
Engine Briggs and Stratton
Engine HP 14 HP
Bore Stroke Single cylinder, fan cool
Main Pump G5-6
Travel Speed 1.5km/h
Overall Dimension 109" x 37" x 87"
Wheelbase 36"
Track Length 48"
Platform Ground Clearance 15"
Platform Turning Radius 31"
Chassis Width 35"
Track Width 7"
Chassis Ground Clearance 5"
Track Height 12.5"
Max Digging Depth 65"
Max Vertical Digging Depth 54"
Max Digging Height 103"
Max Dumping Height 73"
Max Digging Radius 112
Min Rotation Radius 52"
Max Upgrade Height of Blade 13.5"
Max Digging Depth of Blade 10"
Bucket Size 16" Tooth
.jpg)
ZH14G EXCAVATOR SPECS
_edited.jpg)
ZH14G $10,400
Operating Weight - Rubber Tracks 2100 lbs
Operating Weight - Steel Tracks 2700 lbs
Engine Briggs and Stratton
Engine HP 14 HP
Bore Stroke Single cylinder, fan cool
Main Pump G5-6
Travel Speed 1.5km/h
Overall Dimension 1049" x 43" x 52"
Wheelbase 30"
Track Length 43"
Platform Ground Clearance 15"
Platform Turning Radius 29"
Chassis Width 37"
Track Width 7"
Track Height 12.5"
Max Digging Depth 65"
Max Digging Height 98"
Max Dumping Height 69"
Max Digging Radius 94"
Min Rotation Radius 52"
Max Upgrade Height of Blade 6.9"
Max Digging Depth of Blade 12.8"
Bucket Size 16" Tooth
BH14G - $9,900 BH14G-2 - $9,400
Operating Weight - Rubber Tracks 2000 lbs
Operating Weight - Steel Tracks 2600 lbs
Engine Briggs and Stratton
Engine HP 14 HP
Bore Stroke Single cylinder, fan cool
Main Pump G5-6
Travel Speed 1.5km/h
Overall Dimension 109" x 37" x 87"
Wheelbase 36"
Track Length 48"
Platform Ground Clearance 15"
Platform Turning Radius 31"
Chassis Width 35"
Track Width 7"
Chassis Ground Clearance 5"
Track Height 12.5"
Max Digging Depth 65"
Max Vertical Digging Depth 54"
Max Digging Height 103"
Max Dumping Height 73"
Max Digging Radius 112"
Min Rotation Radius 52"
Max Upgrade Height of Blade 13.5"
Max Digging Depth of Blade 10"
Bucket Size 16" Tooth
BH14G and BH14G-2 EXCAVATOR SPECS
